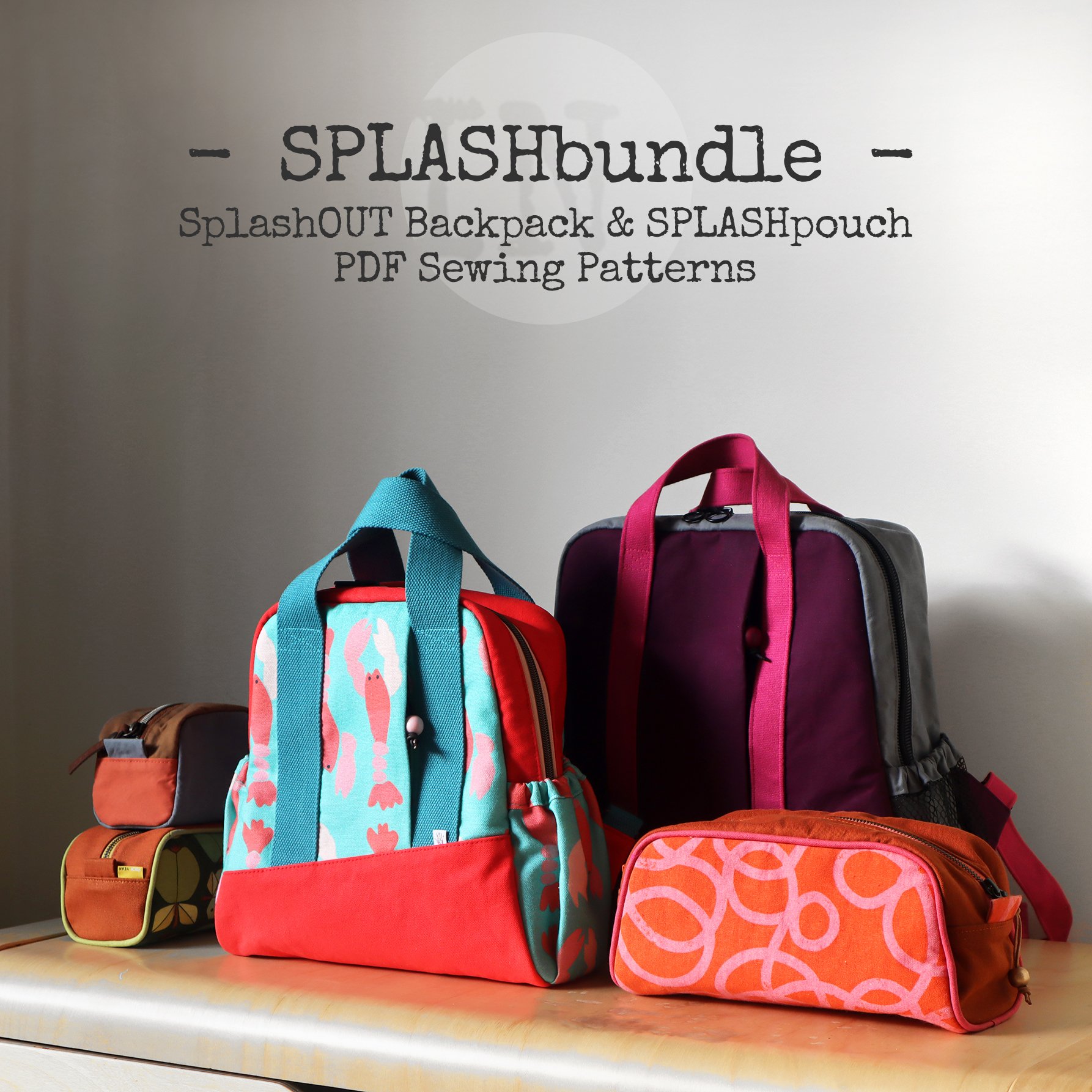

SplashBUNDLE - SplashOUT Backpack and SPLASHpouch PDF Sewing Patterns

A bundle of both the SplashOUT Backpack and the SPLASHpouch digital PDF sewing patterns by In Complete Stitches - at a reduced bundle discount, because you know you're going to want matching SPLASHes!

—

The SplashOUT Backpack is a modern backpack pattern, with some lovely diagonal lines and gentle curves embracing a retro vibe. It comes, as you might expect, with a few options for you to play with... Two sizes, standard and small, and some pocket options to choose from. Both sizes can be made with a concealed front zip, an internal patch pocket and and internal elasticated pocket. They can also be made with an external bottle pocket or two. The internal seams have a bound finish and it can also be finished with a piping trim externally.

Approximate Finished Dimensions:

STANDARD: finished width at base: 35cm (13 3/4"), finished height: 33cm (13"), finished depth, front to back: 11cm (4 3/8") and takes a 61cm (24") closed ended, double pull, zipper.

SMALL: finished width at base: 29cm (11 1/2"), finished height: 29cm (11 1/2"), finished depth, front to back: 10.5cm (4 1/8") and takes a 46cm (18") closed ended, double pull, zipper.

—

The SPLASHpouch is a classic boxy zipped pouch pattern, but with some lovely diagonal lines and gentle curves. It comes, as you might expect, with a few options for you to play with... Four sizes, with a choice of longer or shorter proportions; pencil case, wash bag, tool pouch, project bag, cute little coin purse... whatever your imagination holds! It has a simple pared back aesthetic and construction detailing, with some pocket options for you to play with if you like.

The SPLASHpouch pattern comes in four sizes: two long (one large, Size 1, and one small, Size 3) and two boxy (one large, Size 2, and one small, Size 4). They all have a simple zipped opening with seams finished internally with bias binding. The optional addition of piping to the main seam adds a lovely finish while also giving an extra bit of structure to the pouch. The large sizes, Size 1 and Size 2, can also be provided with an internal patch or external slip pockets.

Approximate Finished Dimensions:

Size 1: overall length: 25cm (10"), finished upper width: 10.5cm (4"), finished height:12cm (4 3/4") and takes a 30cm (12") closed ended zip.

Size 2: overall length: 15cm (6"), finished upper width: 10.5cm (4"), finished height:12cm (4 3/4") and takes a 20cm (8") closed ended zip.

Size 3: overall length: 22.5cm (just under 9"), finished upper width: 9cm (3 1/2"), finished height: 9cm (3 1/2") and takes a 25cm (10") closed ended zip.

Size 4: overall length: 12.5cm (just under 5"), finished upper width: 9cm (3 1/2"), finished height: 9cm (3 1/2") and takes a 15cm (6") closed ended zip.

The SplashOUT Backpack and SPLASHpouch are both "Intermediate" level patterns.

The overall construction method is straightforward, but the sewing of the opposing curves is the most challenging part of making both patterns. Accurate sewing does require some skill and care. But do not fear! A little careful, patient sewing, and dare I prepare you, with an occasional use of your stitch ripper and you will be just fine! The accompanying comprehensive tutorials will empower you to tackle all elements with confidence.

DIGITAL DOWNLOAD INCLUDES, for both the SplashOUT Backpack and the SPLASHpouch, A ZIPPED FILE CONTAINING:

- A detailed, extensive, illustrated step-by-step pdf tutorials to guide you in confidently sewing your own SplashOUT Backpack and SPLASHpouch

- An A4 & Letter tiled print at home PDF pattern file

- A0 copyshop pattern file

- A layered PDF projector file

Upon purchase you will be sent a link to the zipped pattern file that lasts for 24hours after purchase - but don’t worry! Should you need to access your pattern at a later date just click on the original email to be sent a new one. For your own convenience we do advise that you download and save your files securely on your computer upon purchase.

SplashOUT Backpack:

OUTER FABRIC:

Most mid-heavy weight woven fabrics are suitable such as oilskin/waxed canvas, mid - weight canvas, denim. Quantities of fabric vary depending on size, option and colour blocking choices.

The STANDARD size requires up to 60cm (3/4yrd) of 110cm/42" wide outer fabric.

The SMALL size requires up to 45cm (1/2yrd) of 110cm/42" wide outer fabric.

LINING:

Medium-lightweight cotton, quilting cotton, linen, mid-light weight canvas. Quantities of fabric vary depending on size, option and colour blocking choices.

The STANDARD size requires up to 110cm (1 1/4yrd) of 110cm/42" wide lining fabric.

The SMALL size requires up to 50cm (3/4yrd) of 110cm/42" wide lining fabric.

MESH FABRIC: You may wish to use small amounts of mesh fabric for the bottle pockets and/or internal elasticated pocket.

—

SPLASHpouch:

OUTER FABRIC:

Most mid-heavy weight woven fabrics are suitable such as oilskin/waxed canvas, mid - weight canvas, denim. Quantities of fabric vary depending on size, option and colour blocking choices. The largest size requires up to 40cm (0.9yrd) of 110cm/42" wide outer fabric.

LINING:

Medium-lightweight cotton, quilting cotton, linen, mid-light weight canvas. Quantities of fabric vary depending on size, option and colour blocking choices. The largest size requires up to 40cm (0.9yrd) of 110cm/42" wide outer fabric.f 110cm/42" wide lining fabric.

SplashOUT Backpack:

NOTIONS required include (depending on your option choice):

- Main Zipper: For the main opening you will need a closed ended, preferably, though not essential, double-pull zipper, in one of the following lengths: STANDARD: 61cm (24"), SMALL: 46cm (18"). You can of course use a continuous coil zipper; just allow about 3cm - 4cm (1 1/4" - 1 5/8") longer zipper length than the sizes above. Both a #5 or #3 sized zipper are suitable.

- (Optional) Front Hidden Zipper: For the vertical hidden zipper to the front pocket you will need a closed ended zip, ideally a #3 sized zipper, in one of the following lengths: STANDARD: 20cm (8"), SMALL: 15cm (6"). You can of course use a continuous coil zipper; just allow about 3cm (1 1/4") longer zipper length than the sizes above. Ideally a #3 sized zipper.

- Bias Binding: Ready-made or self-made bias binding to finish the internal seams. STANDARD: 2.3m (2 1/2 yards), SMALL: 2m (2 1/4 yards

- (Optional) Piping: Ready-made piping or piping cord plus self-made bias binding to make your own. STANDARD: 2.3m (2 1/2 yards), SMALL: 2m (2 1/4 yards)

- (Optional) Elastic: For the Bottle Pocket externally and the Elasticated Pocket internally. Allowing a bit extra for ease of construction, you will need approximately: Bottle Pocket: 6mm - 12mm (1/4" - 1/2") wide elastic: STANDARD/SMALL: 25cm (9 3/4"). Internal Elasticated Pocket: 6mm - 12mm (1/4" - 1/2") wide elastic: STANDARD: 48cm (19"), SMALL: 40cm (16").

- Hand & Backpack Straps & Hardware: 25mm (1") wide webbing: STANDARD: 4m (4 1/2 yrds) which includes: 2x 72cm (28 1/2") for the hand straps, 2x 115cm (40") for the backpack straps and 2x 10cm (4") for the strap connector pieces. SMALL: 3.75m (4 yrds) which includes: 2 x 60cm (23 1/2") for the hand straps, 2x 115cm (40") for the backpack straps and 2x 10cm (4") for the strap connector pieces. 2x 25mm (1") D-rings & 2x 25mm (1") adjustable sliders

- (Optional) Piping: Ready made piping or piping cord plus self made bias binding to make your own. Allowing a bit extra for ease of construction, you will need approximately: STANDARD: 2.3m (2 1/2 yards), SMALL: 2m (2 1/4 yards)

- Interfacing: The SplashOUT Backpack can be made without overall interfacing depending on the fabric you use and the level or structure that you desire. However for most fabrics (though perhaps not the heaviest canvases) it is recommended to reinforce all main outer fabrics with a good quality mid/light weight interfacing such as Pellon SF101 Shape Flex or Vilene G700. This adds extra strength and stability to the fabric without adding excessive bulk, which could make the bag unwieldy in construction.

The pattern tutorial contains further suggestions on areas where you may want to consider adding extra padded or lofted interfacing.

- Needle suitable for your fabric choice.

—

SPLASHpouch:

NOTIONS required include (depending on your option choice):

- Zipper as listed in the Full Description above or a continuous zip approximately 3cm / 1" longer than listed above.

- (Optional) Bias Binding: Ready-made or self-made bias binding to finish the internal seams. Up to 1.5m for the largest size.

- (Optional) Piping: Ready-made piping or piping cord plus self-made bias binding to make your own. Up to 1.5m for the largest size.

- (Optional) Snap Fixings: 2 x 12mm (1/2") Anorak Snap. In Sizes 1 and 2 you can choose to add an external double pocket secured with a snap fixing.

- (Optional) Strap: webbing/leather/strap to make a grab strap for the end of your SPLASHpouch. Size 1 & Size 2: 18cm (7") - approx. width 25mm (1"), Size 3 & Size 4: 15cm (6") - approx. width 20mm (3/4")

- Interfacing: The SPLASHpouch can be made without overall interfacing, however, depending on the fabric you use and the level or structure that you desire, you may wish to interface some areas. The pattern tutorial contains suggestions on suitable fabrics and on areas where you may want to consider adding interfacing.

- Denim needle/needle suitable for your fabric choice.

Huge thank you to a wonderful team of testers who provided excellent feedback and inspirational sewing.

All photos by In Complete Stitches with the exception of tester photos shown by:

www.instagram.com/sewbonico

www.instagram.com/nanik.design/

www.instagram.com/spreefee.handmade.bags/
